Part number: 90-001091 Manufacturer SKU: 2025868
For current pricing and to place an order please contact your Ellsworth Customer Service Representative.
Call Us Contact Customer Service at +65 9386 6411。
Live Chat Speak with one of our Technical Service Personnel.
Request a Quote Submit a quote request and a Sales Representative will contact you.
Send an Email We will respond within 1 business day.
-

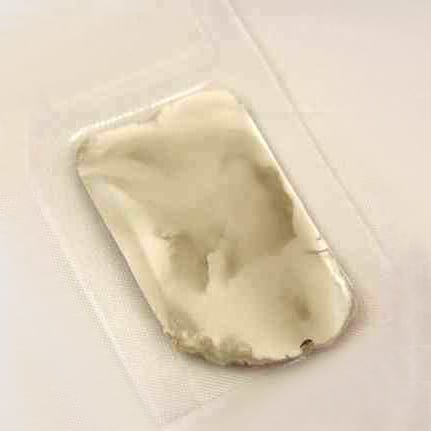

DescriptionHenkel Loctite 402 Adhesive Silver is a two component, room temperature curing, epoxy paste that is used for sealing and bonding electronic components, heat sensitive materials, plastic laminates, metals, and ceramics. It is silver filled, electrically conductive, thermally conductive, and solventless. 2.5 g Packet.
-
Product Details
Typical Use: Can be used in the assembly and repair of electrical modules, printed circuits, wave guides, flat cable and high frequency shields. Chemical Composition: Silver/epoxy Color: Silver Components: 2 part Cure Time: 18h @ 25 °C; 2h @ 65 °C; 30min @ 100 °C; 15min @ 120 °C Flash Point: Resin: 132.2 °C; Hardener: 175 °C Hardness: 85 D Mix Ratio: 100:6 by weight Service Temperature: -60 to 125 °C Specific Gravity: 2.5 Tensile Strength: 700 psi @ 25 °C Thermal Conductivity: 42 Viscosity: Mixed: Smooth paste Volume Resistivity: 0.03 ohm-cm @ 25 °C Working Time: 75min @ 25 °C -
