Part number: 2007581Manufacturer SKU: 95-000105
For current pricing and to place an order please contact your Ellsworth Customer Service Representative.
Call Us Contact Customer Service at +65 9386 6411。
Live Chat Speak with one of our Technical Service Personnel.
Request a Quote Submit a quote request and a Sales Representative will contact you.
Send an Email We will respond within 1 business day.
-

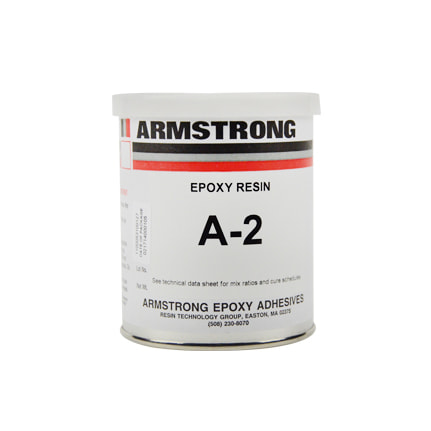

DescriptionArmstrong Epoxy Resin Adhesive A-2 Off-White is a general purpose adhesive that is used for hard to bond surfaces such as wood, cast iron, nylon, acrylics, bronze, steel, titanium, and other rigid materials. It offers versatility, electrical insulation, and low thermal expansion. 1 pt Can.
-
Product Details
Typical Use: The choice of one of four recommended Activators (A, E, W or H-20) makes it an ideal choice for many applications. Chemical Composition: Epoxy resin Color: Off-White Components: 2 part Cure System: Heat Cure Time: Activator A: 2h @ 73.8 °C; Activator E: 1h @ 93.3 °C; Activator W: 30min @ 93.3 °C; Activator H20: 30min @ 73.8 °C Elongation: Activator A: 1.5%; Activator E: 2.8%; Activator W: Flash Point: >93.3 °C Key Specifications: MCS6061 TY 1 and MS34.40-13 Rev K. If you require manufacturer certification to a certain spec, please request a quote as additional fees may apply. Ellsworth Adhesives is an ISO-9001 registered and AS9120 compliant distributor. Mix Ratio: Activator A: 100:4 by weight; Activator E: 100:6 by weight; Activator W: 100:36; Activator H20: 100:10 by weight Shear Strength: Activator A: 2,900 @ room temperature; Activator E: 2,500 @ room temperature; Activator W: 4,300 @ room temperature; Activator H20: 3,800 @ room temperature Specific Gravity: 1.8 Tensile Strength: Activator A: 3,000 psi; Activator E: 6,570 psi; Activator W: 5,100 psi; Activator H20: 3,800 psi Viscosity: Activator A: 210,000; Activator E: 170,000; Activator W: 130,000; Activator H20: 15,000 Working Time: Activator A: 30min; Activator E: 2 to 3h; Activator W: 1 to 2h; Activator H20: 45 to 90min -
SDS / TDS
