Part number: 29353 Manufacturer SKU: 237128
For current pricing and to place an order please contact your Ellsworth Customer Service Representative.
Call Us Contact Customer Service at +65 9386 6411。
Live Chat Speak with one of our Technical Service Personnel.
Request a Quote Submit a quote request and a Sales Representative will contact you.
Send an Email We will respond within 1 business day.
-

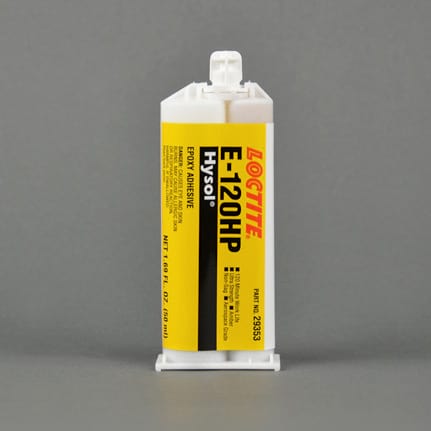

DescriptionHenkel Loctite Hysol E-120HP is a high-viscosity, non-sag aerospace grade epoxy adhesive. Once fully cured it offers superior thermal shock resistance, excellent mechanical and electrical properties, and is able to withstand exposure to a wide variety of solvents and chemicals. 50 mL Cartridge.
-
Product Details
Typical Use: Originally designed for bonding nose cones in aerospace applications. Also suitable for low stress, general industrial applications which require high impact and high peel strength. Bonds dissimilar materials including aluminum, steel, and other metals. Brand: Hysol Chemical Composition: Resin: Epoxy; Hardener: Polyamide Color: Amber to Beige Components: 2 part Cure System: Room Temperature Cure Time: 6 to 24h @ 25 °C Dielectric Strength: 25 kV/mm Elongation: 10% Flash Point: Resin: 96.11 °C; Hardener: >93 °C Hardness: 76 to 90 D Mix Ratio: 2:1 by volume; 100:46 by weight Specific Gravity: Resin: 1.1 @ 25 °C; Hardener: 1 @ 25 °C Tack Free Time: 140min @ low humidity Tensile Strength: 5,900 psi Viscosity: Resin: 41,000 to 61,000; Hardener: 2,000 to 4,000 Working Time: 120min -
SDS / TDS
