Part number: 567 PR/LESS PT B 20.4KG Manufacturer SKU: 2768895
For current pricing and to place an order please contact your Ellsworth Customer Service Representative.
Call Us Contact Customer Service at +65 9386 6411。
Live Chat Speak with one of our Technical Service Personnel.
Request a Quote Submit a quote request and a Sales Representative will contact you.
Send an Email We will respond within 1 business day.
-

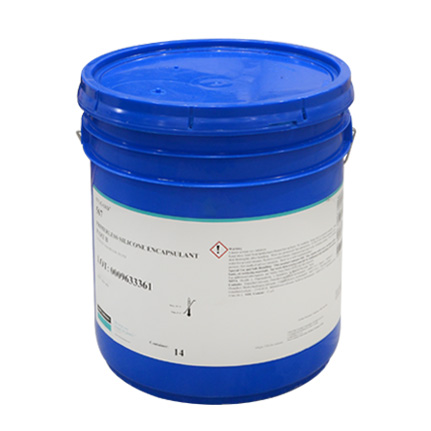

DescriptionDow SYLGARD™ 567 Primerless Silicone Encapsulant Black is a two component, heat curing elastomer that is used as a protective coating, encapsulating, and potting electrical applications such as LED lighting, power supplies, transformers, sensors, amplifiers, and connectors. It provides flowability, self priming, low viscosity, flame resistance, and good dielectric properties. Part B, 20.4 kg Pail.
-
Product Details
Typical Use: Low cost primerless adhesion; encapsulation, protection of electrical/electronic devices. Brand: SYLGARD Color: Black Components: 2 part Cure System: Heat Cure Time: 15min @ 150 °C; 60min @ 125 °C; 120min @ 100 °C Dielectric Strength: 21 kV/mm Flash Point: 115.5 °C Hardness: 42 A Key Specifications: MIL-PRF-23586F (Grade B2), Type I, Class IV, QPL, UL 94 V-0 If you require manufacturer certification to a certain spec, please request a quote as additional fees may apply. Ellsworth Adhesives is an ISO-9001 registered and AS9120 compliant distribut Mix Ratio: 1:1 Shear Strength: 140 Specific Gravity: 1.24 Thermal Conductivity: 0.3 W/mK Viscosity: 1,540 Volume Resistivity: 2.1 x 10^15 ohm-cm Working Time: >3d @ room temperature -
SDS / TDS
